Herøya lng import

In 2017, La Santa Maria was built. The C-Class platform was part of the first ever IQuay C-Class System.

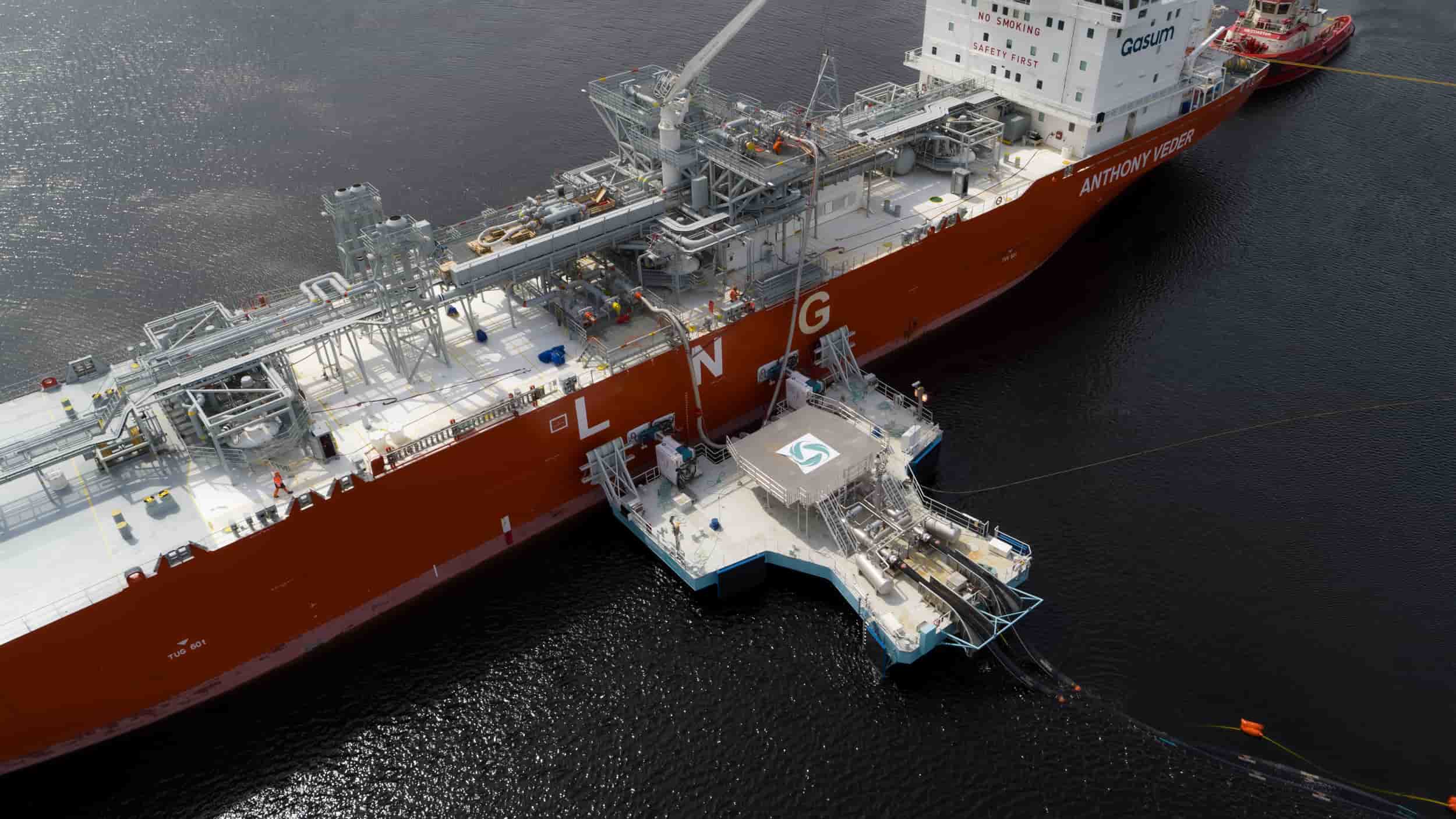

Later the same year, the system was in operation, as Naturgy Energy Group S.A. (then Natural Gas Fenosa) and ECOnnect Energy (then Connect LNG) made history with the world's first jettyless LNG transfer.

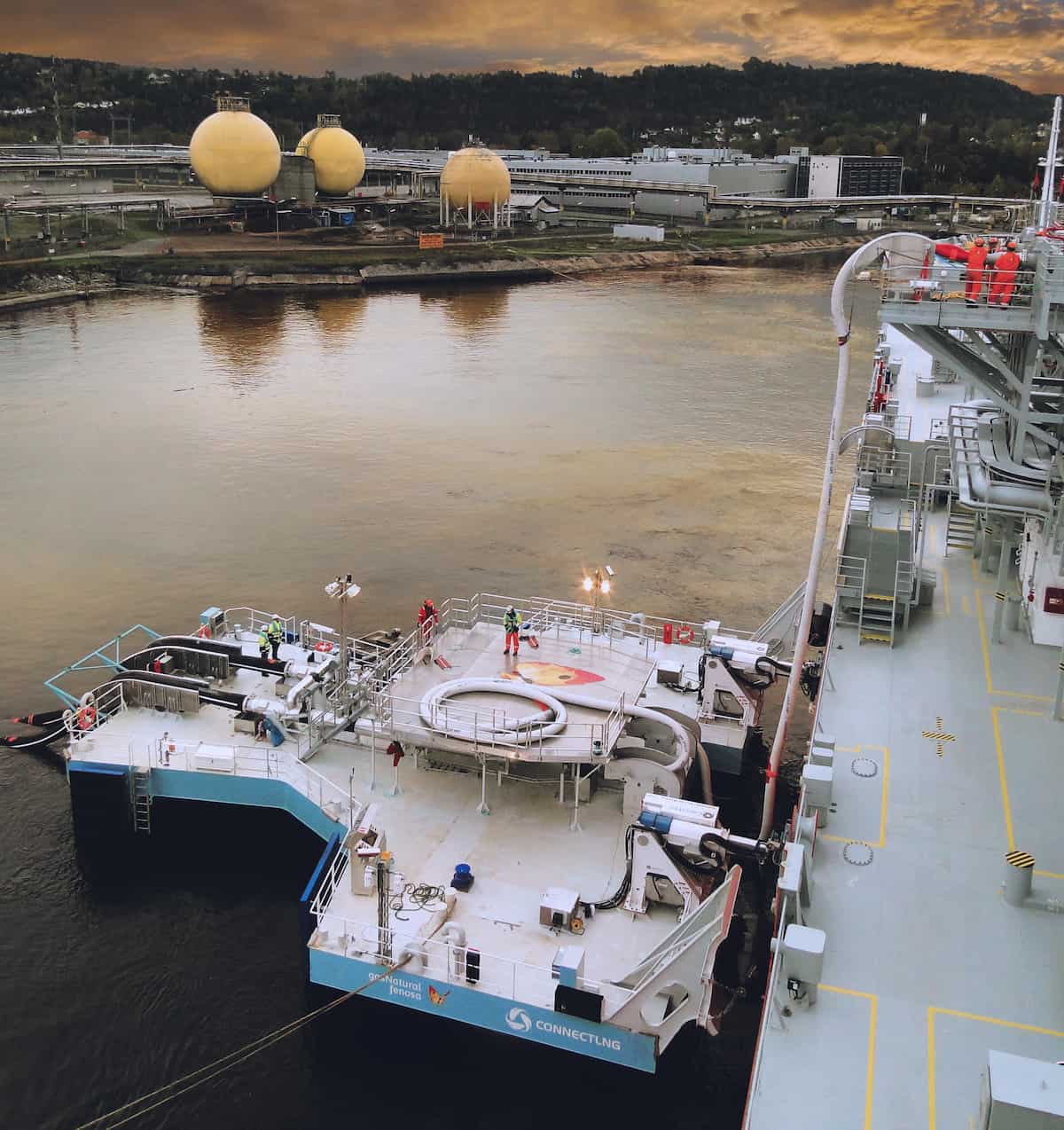

In 2021, Naturgy and ECOnnect joined forces with Gasum and Air Liquide Skagerak to complete another commercial LNG transfer at Herøya, logging flow rate and pressure data in the floating hoses to benchmark performance against traditional solutions.

Discuss your LNG import project

2017 Operation

Location: Herøya, Norway
Speed of execution: From detailed design to successful hook‑up, project execution took less than six months.
Permitting advantage: The marine permitting process took about three months, compared to around three years for a quay constructed at the same location.
Rapid installation: The system was installed in one day after arrival from the dockyard and was in full operation the day after.

2021 Operation

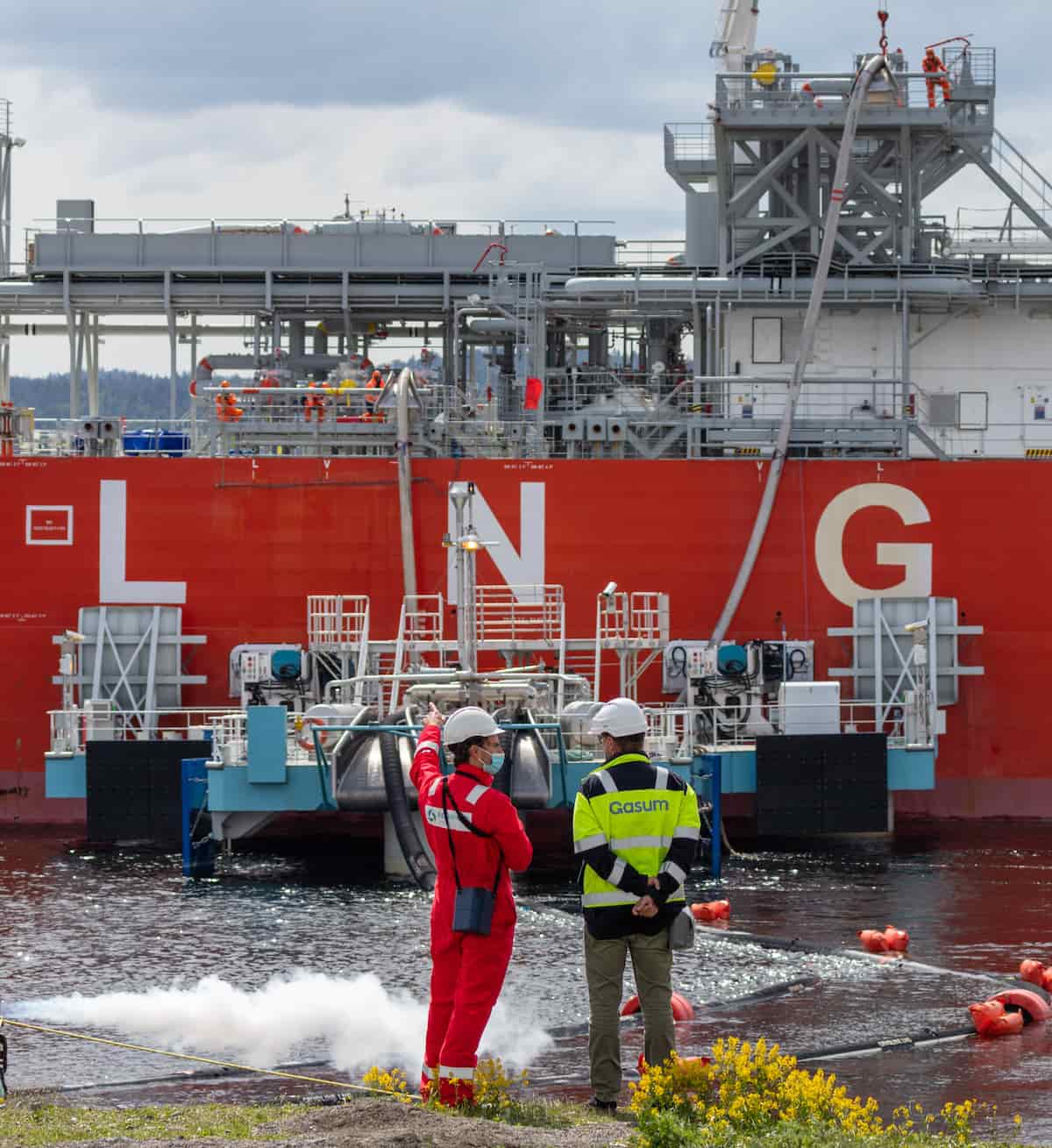

‍Operational approach: The cargo was delivered with minimal personnel for aerial hose hookup to the carrier vessel, and the discharge was remotely monitored from shore.
Performance measurements: The operation collected measurements of flow rate, friction, and pressure in the floating, flexible hoses.
Two-phase execution: Phase 1 circulated fluid from the carrier high manifold through the IQuay system and back to the carrier lower manifold to calculate hose friction factor; Phase 2 completed commercial offloading to onshore storage tanks between Gasum and Air Liquide Skagerak.

LA santa maria timeline

Read more about the 2017 operation here, and the 2021 operation here.

The IQuay system portfolio

The IQuay C-Class

Proven, fully floating transfer system for secure, flexible ship-to-shore transfer of cryogenic fluids. Scalable and ideal for frequent operations.

The IQuay F-Class

Proven in global deployments. Mounted on FSRUs or FSUs, the F-Class enables continuous LNG and gas delivery in harsh conditions. No jetty required.

The IQuay Regas Terminal

With the R-Class, we can deliver storage, regas, and transfer in one modular system. Designed for fast-track deployment, flexibility and minimal environmental impact.
